Product Summary

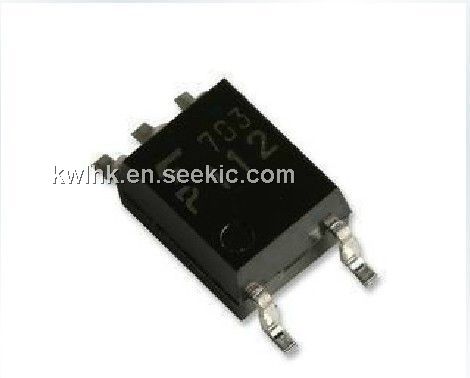

The TLP112A is a Digital Logic Isolation Line Receiver, suitable for surface mount assembly. The TLP112Aconsists of a high output power GaAlAs light emitting diode, optically coupled to a high speed detector of one chip photodiode-transistor.
Parametrics
TLP112A absolute maximum ratings: (1)Output current IO: 8 mA; (2)Peak output current IOP: 16 mA; (3)Supply voltage VCC: -0.5 to 15 V; (4)Output voltage VO: -0.5 to 15 V; (5)Output power dissipation PO: 100 mW; (6)Operating temperature range Topr: -55 to 100 ℃; (7)Storage temperature range Tstg: -55 to 125 ℃; (8)Lead soldering temperature(10s) Tsol: 260 ℃; (9)Isolation voltage(AC, 1min., R.H.≤ 60%) BVS: 2500 Vrms.
Features
TLP112A features: (1)Isolation voltage: 2500Vrms (min.); (2)Switching speed: tpHL=0.8μs, tpLH=0.8μs(max.)(RL=1.9kΩ); (3)TTL compatible; (4)UL recognized: UL1577, file no. E67349.
Diagrams
